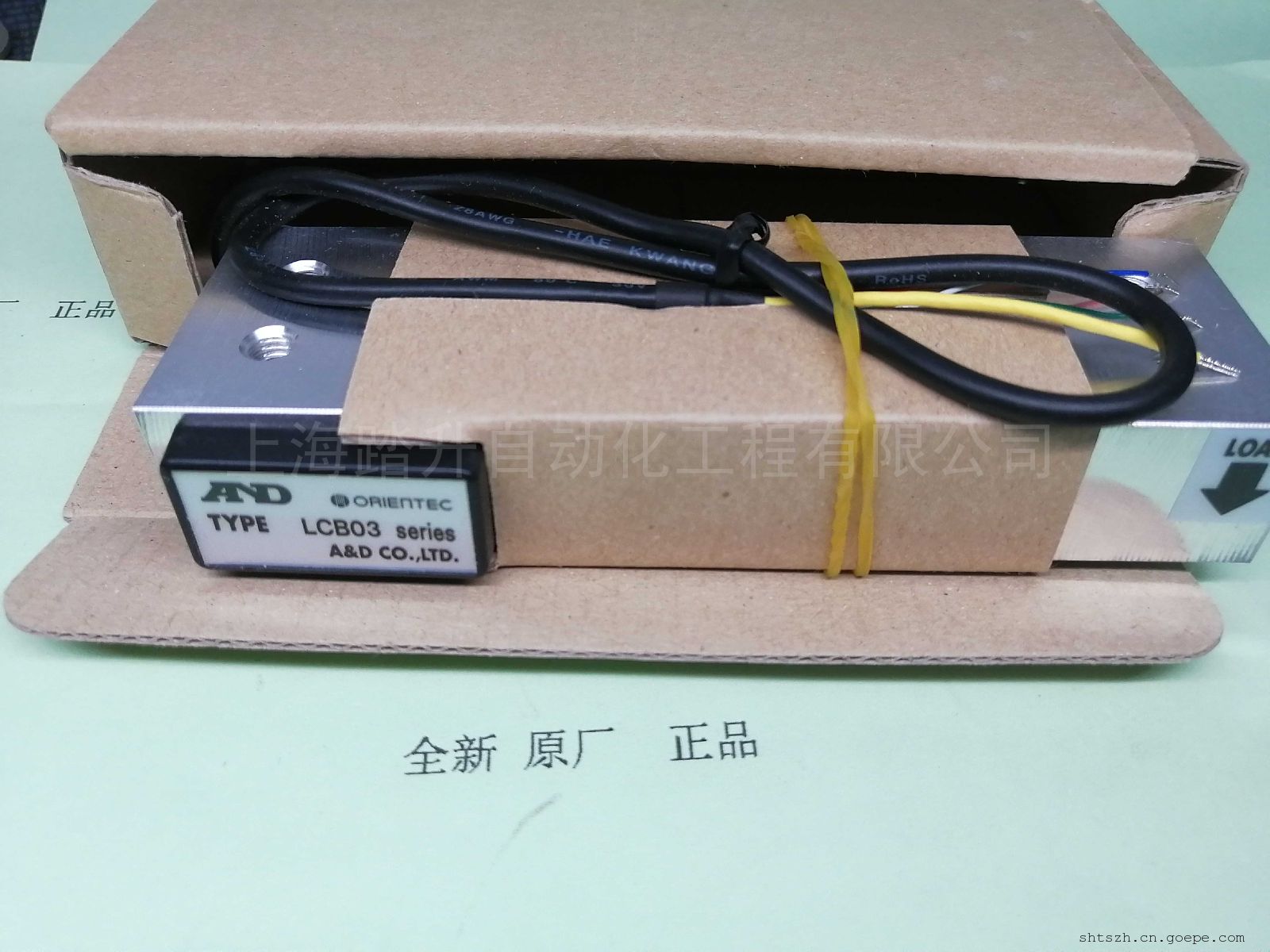

日本AND称重传感器LCB03K003M LCB03K006M
详细信息
| | 品牌：日本AND | | 加工定制：是 | | 型号：LCB03K003M LCB03K006M | |
| | 制作工艺：集成 | | 输出信号：模拟型 | | 材料：金属 | |
| | 材料物理性质：绝缘体 | | 材料晶体结构：单晶 | | 防护等级：IP65 | |
| | 线性度：0.05-0.02 %F.S | | 迟滞：0.015 %F.S | | 重复性：0.03 %F.S | |
| | 灵敏度：2 mV/V±0.2 mV/V | | 分辨率：3000R | | | |
| LCB03 (Aluminum) |
| Compact design for bench scale, single point compact load cells |
|
|
| Capacity |
Model No. |
CAD File |
| LCB03M Series |
| 3 kgf |
LCB03K003M |
Download |
| 6 kgf |
LCB03K006M |
| 10 kgf |
LCB03K010M |
| 15 kgf |
LCB03K015M |
| 20 kgf |
LCB03K020M |
| LCB03L Series |
| 25 kgf |
LCB03K025L |
|
| 30 kgf |
LCB03K030L |
| 35 kgf |
LCB03K035L |
|
| |
|
SPECIFICATIONS
MODEL DBBP
20, 50, 100, 200, 500kg
1, 2, 3, 5t
Rated output(R.O.) 3mV/V ± 0.5%
Non-linearity ≤0.03% R.O.
Hysteresis ≤0.03% R.O.
Non-repeatability ≤0.02% R.O.
Creep error ≤0.03% in 20min.
Zero balance ≤1% R.O.
Compensated temperature range -10 ~ 70°C
Operating temperature range -20 ~ 80°C
Temp. effect on rated output ≤0.03% LOAD/10°C
Temp. effect on zero balance ≤0.03% R.O./10°C
Terminal input resistance 350 Ohms ±3.5 Ohms
350 Ohms ±5 Ohms
Insulation resistance (Min.) 2000 MOhms at 50V DC
Excitation voltage 10V(Recommended), 15V(Max.)
Electrial connection Ø5mmx3m(22AWG x 4Core Shielded)
Protection class meets IP 67
Safe overload 150% R.C
Ultimate overload 300% R.C
