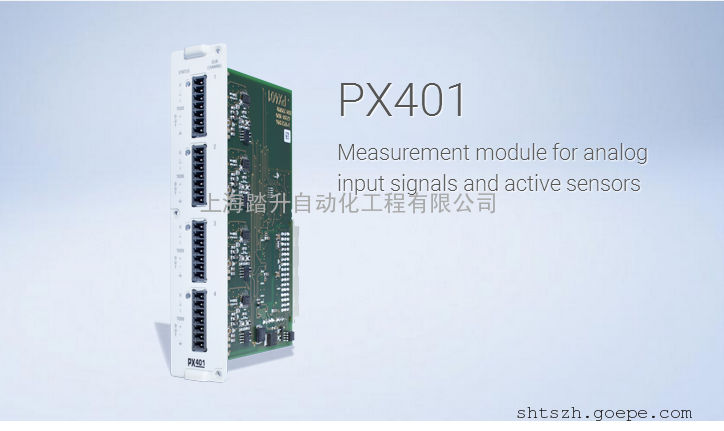

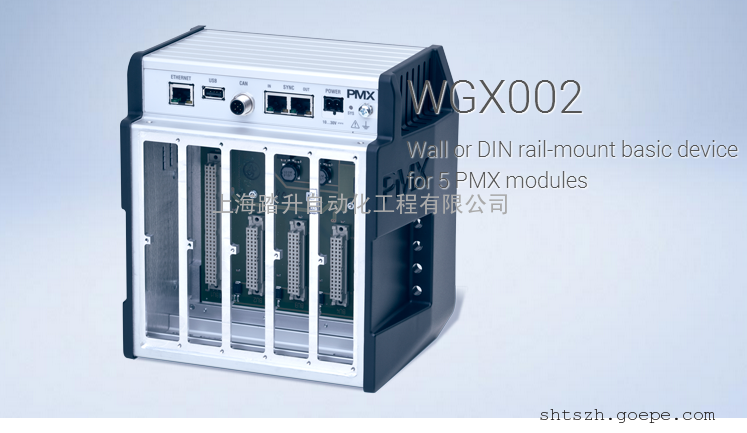

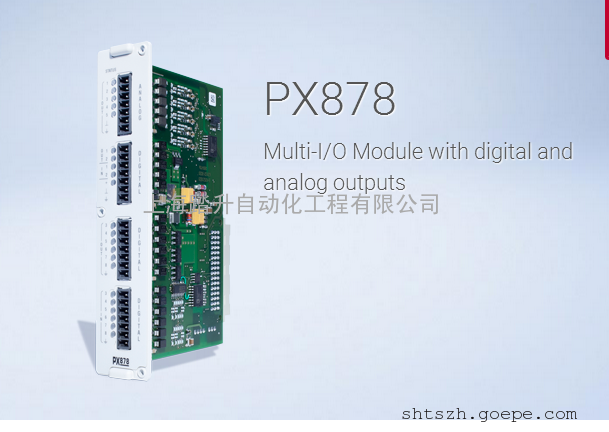

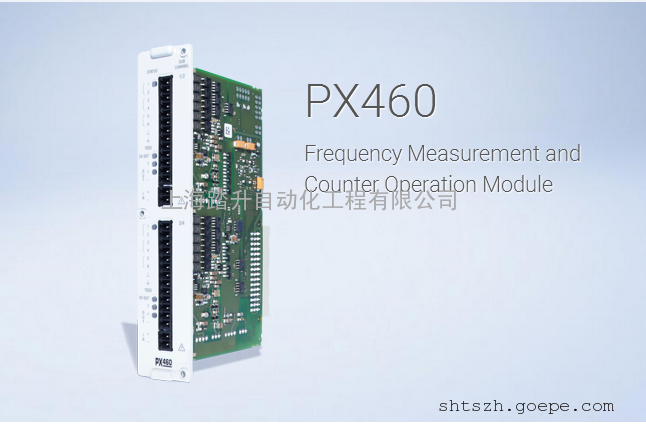

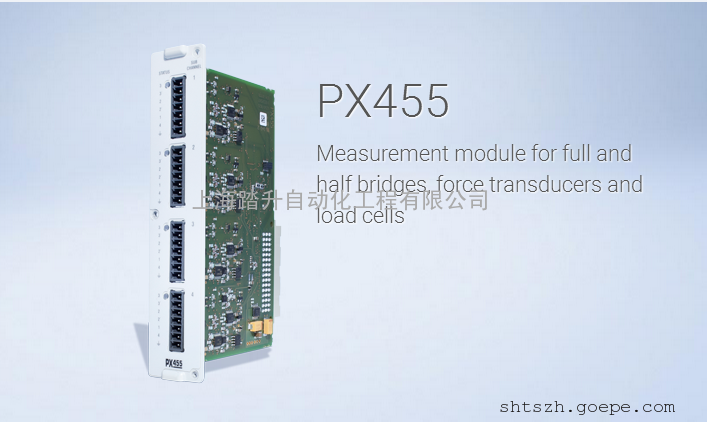

德国HBM测量标准WGX002 PX401 PX455 PX460 PX878 PMX

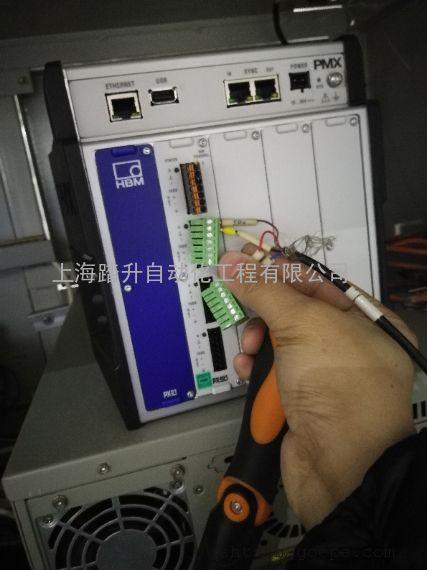

PMX 数据采集控制系统 - 新的工业测量标准
High precision for optimum results in production
High accuracy when acquiring measurement data gives you considerable efficiency advantages in your production processes. With a sampling rate up to 38,4kHz, PMX offers the greatest precision for optimal quality assurance.

Moreover, PMX can already process the signal internally and transfer this in real-time to your automation system. PMX identifies transducers automatically thanks to the integrated TEDS system: this is dynamic plug and measurement technology for efficient production.

Real-time data acquisition via Industrial Ethernet
PMX supports current Industrial Ethernet technology: for example ProfiNET, EtherCAT and Ethernet/IP. Therefore PMX integrates seamlessly into modern production plants and enables the measurement, calculation and automation of your data in real-time.

Scalability: PMX grows with your requirements
Thanks to flexible plug-in cards and the possibility to connect different PMX modules to each other, you can increase your number of channels. You can integrate up to 300 measurement channels and up to 600 mathematical calculation channels.
The BN100A bridge calibration unit is a highly precise calibrator to calibrate measuring equipment and measurement chains which function with a carrier frequency of 225Hz.

K3607 标定设备 可以用于标定测量链或测量放大器,而无须施加机械量在传感器上.
因此,设备上有采用星形连接的高精度电阻,模拟 350-Ω 应变计 全桥传感器. 内置的电阻有极低的电容,
电阻的精度等级为 0.025.
当连接放大器时, K3607 可以采用 6线 电路来减少长电缆带来的影响.

K148 模拟应变全桥来标定放大器,*大8个通道. K148 有5个测量范围 ,每个十个步骤. 其标定直流和载频放大器,范围225 Hz *大到 4.8 kHz,标定范围为 ?.2 mV/V 到 ?00 mV/V .设备经过很好的平衡,提供了 极高的精度 线性误差为 0.0025%. (直流放大器为0.01%).

HBM 用于应变1/4桥的 K800 标定单元 可以同时标定8个通道.此设备专门用于多通道放大器 , 例如 HBM MGCplus, 其必须进行周期标定以保证精度.
多通道放大器是用来做复杂的需要较高的频道测量应用,应用范围从汽车道路试验,实验应力分析,到航空工业.
